Descrição

1. Referência: 99.0520.0

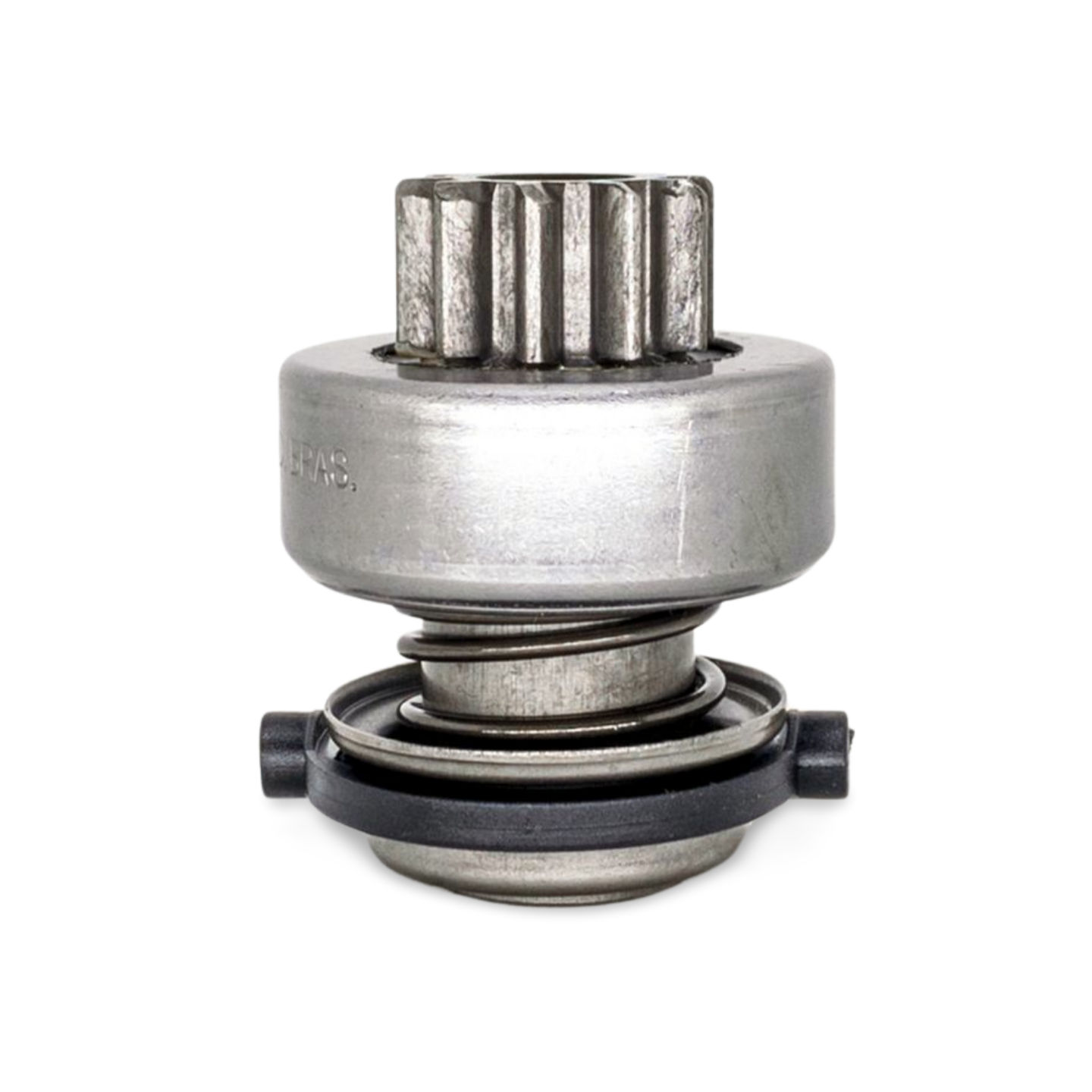

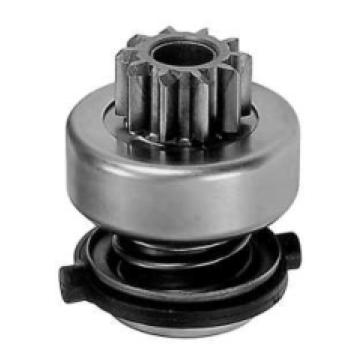

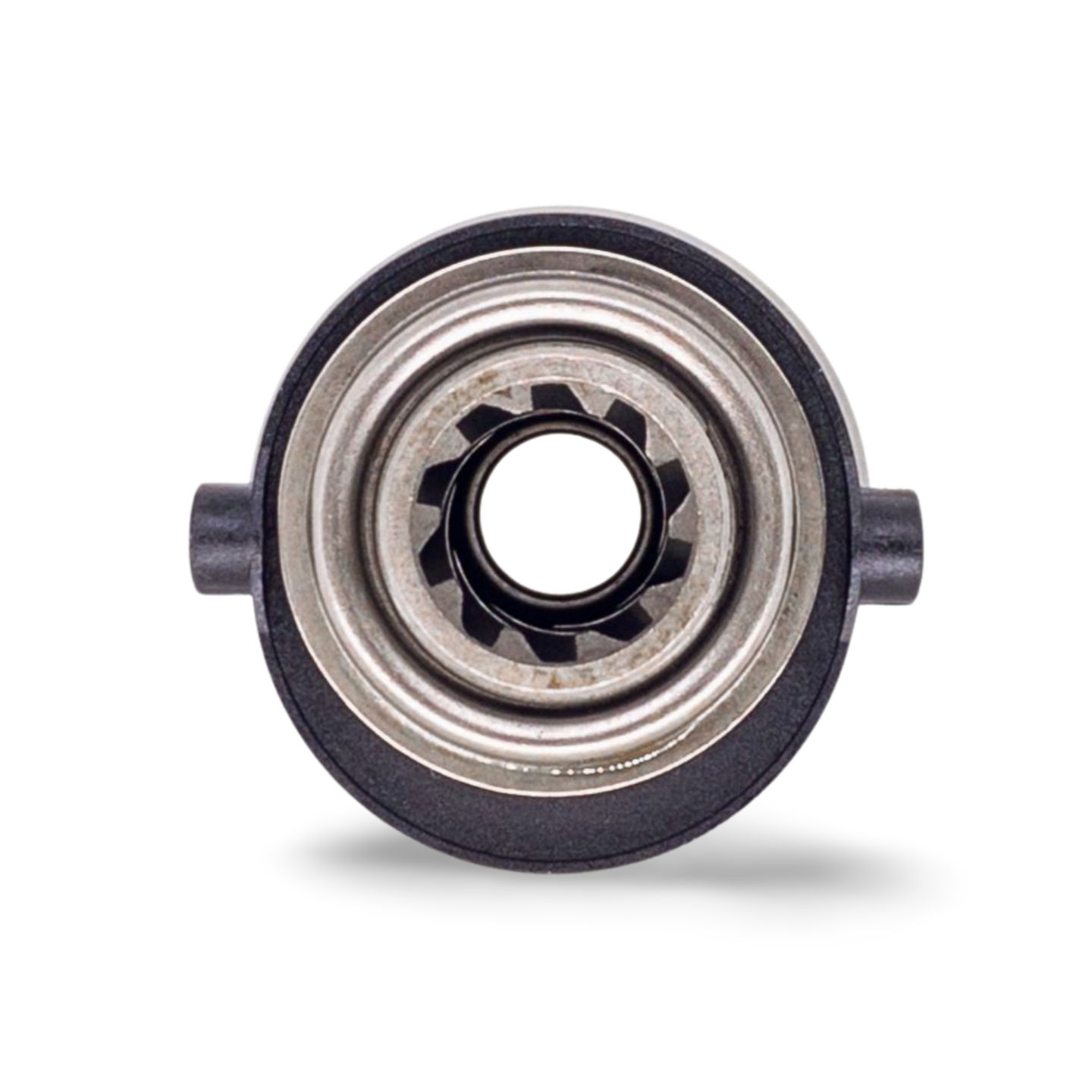

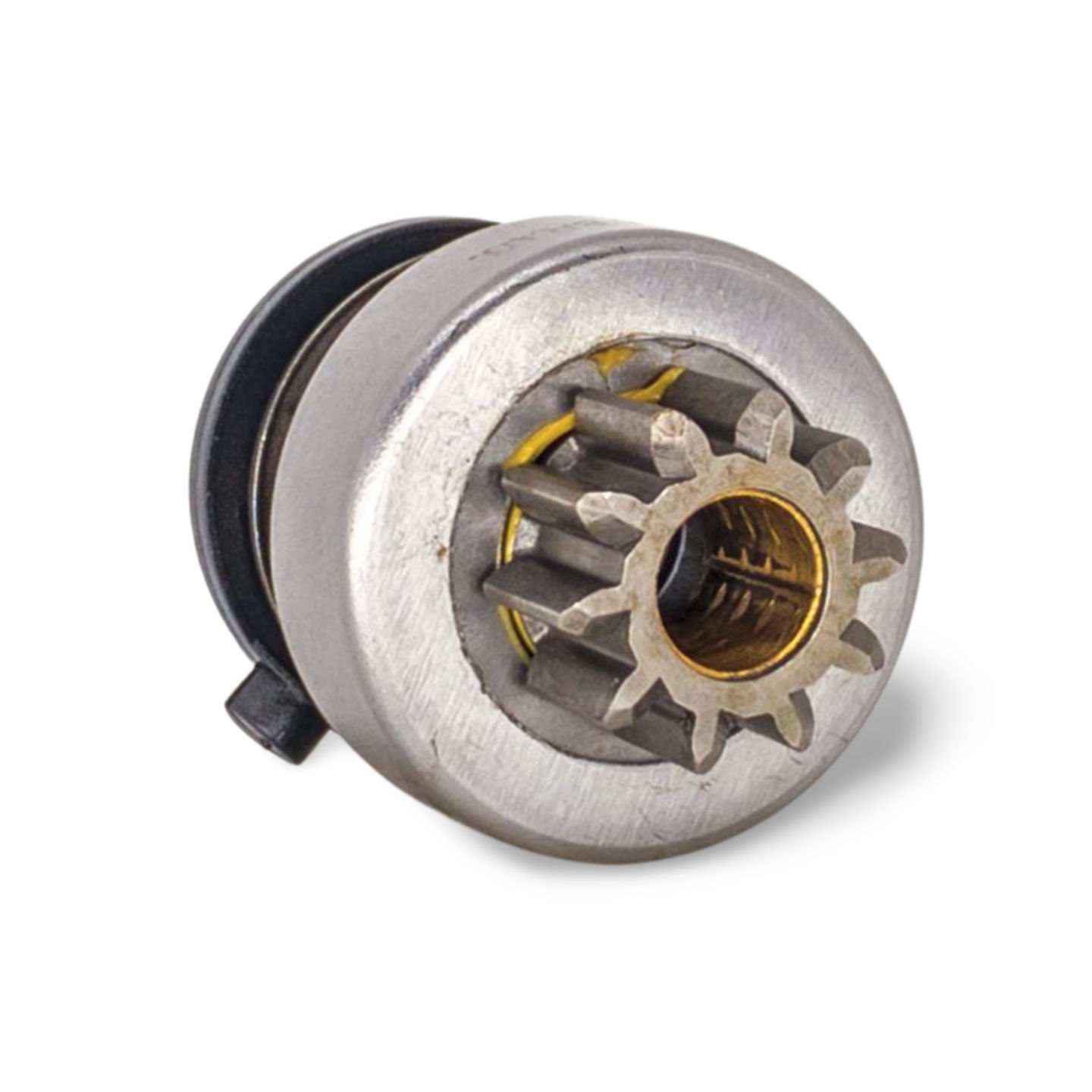

2. Descrição: Impulsor de Partida

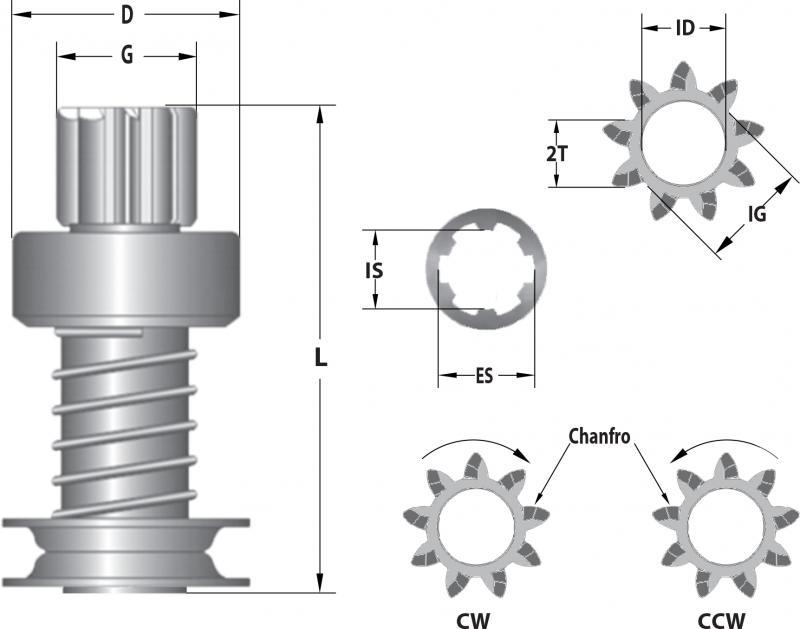

3. Dados Técnicos:
T – No Dentes 10
2T – 2 Dentes 10,12
G – Ø Ext. Dente 26,8
IG – Ø Int. Dente 18,4
ID – Ø Bucha 12,06
CW-CCW – Sentido Horário
D – Ø Capa 46,3
SPL – No Estrias 10
ES – Ø Ext. Estria 18,3
IS – Ø Int. Estria 15,0
L – Comprimento 58,6

4. Aplicação:
Ford: Capri 1.6, 2.0. Escort 1.1, 1.3, 1.6, 1.6 D, XR3 e c/ motor Zetec 1.8. Euroline 2.0i. Fiesta 1.0, 1.1, 1.3, 1.4, 1.6 D, XR2. Granada 2.0. Courier c/ motor Zetec. Mondeo 1.8i, 2.0i Turnier. Orion 1.6, 1.6 D. Scorpio 1.8, 2.0, 2.0i. Sierra 1.3, 1.6, 1.8, 2.0, 2.0i, 2.3.

5. Sistema:
Bosch

6. Nº Original/ Equivalentes:
Bosch: F000AL1519 – F000AL1699 – 1006209510 – 1006209516 – 1006209537 – 1006209545 – 1006209566 – 1006209905
Cargo: 131433
Italacciai: SD439
Lester: 16405 – 16530
Lucas: TMB566
Lucas Indiel: 223119
Zen: 0520

7. Motor de Partida:
Bosch: 0001107014 – 0001107016 – 0001107027 – 0001107028 – 0001107029 – 0001107041 – 0001108004 – 0001108020 – 0001108033 – 0001108037 – 0001108039 – 0001108040 – 0001108057 – 0001108071 – 0001108082 – 0001108083 – 0001108087 – 0001108106 – 0001108110 – 0001108111 – 0001108121 – 0001108122 – 0001108132 – 0001108139 – 0001108140 – 0001108152 – 0001108155 – 0001110013 – 0001110019 – 0001110069 – 0001110070 – 0001112009 – 0001112012 – 0001112016 – 0001112020 – 0001112033 – 0001113003 – 0001113005 – 0001113009 – 0001114008 – 0001114014 – 0001114017 – 0001114020 – 0001114021 – 0001114022 – 0001208513 – 0001208514 – 0001208521 – 0001208706 – 0001208715 – 0001208718 – 0001211512 – 0001211513 – 0001211515
